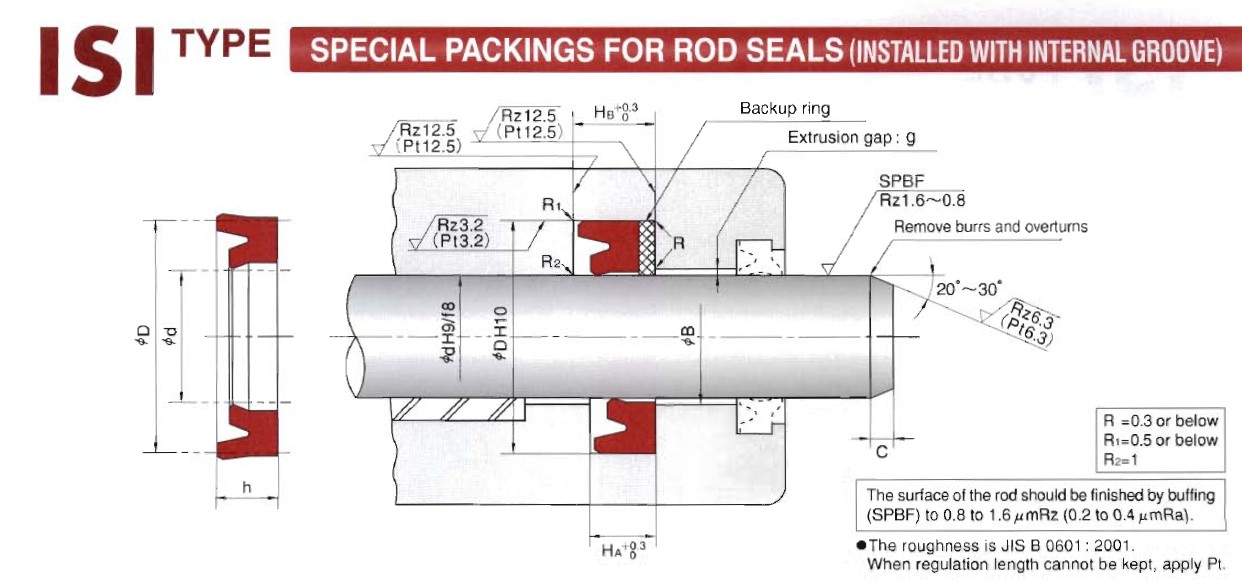

ISI型轴用密封
ISI型轴用密封主要材料是邵尔94度聚氨酯，压力可达到42MPA，温度：-35度---+100度，有极好的耐磨性和密封能力。他有较小的截面，可装入整体沟槽中。
| 密封件公称尺寸 | 沟槽部分尺寸 | 订货号 | ||||
| d | D | h | HA | HB | C | |
| 18 | 26 | 5 | 5.7 | 7.7 | 2 | FU0180-K0 |
| 20 | 28 | 5 | FU0212-K0 | |||
| 22.4 | 30 | 5 | FU0260-K0 | |||
| 30.4 | 5 | FU0261-K0 | ||||
| 23.5 | 31.5 | 5 | FU0267-K0 | |||
| 25 | 33 | 5 | 2.5 | FU0276-K0 | ||
| 35 | 5 | FU0278-K0 | ||||
| 28 | 35.5 | 5 | 8.7 | FU0320-K0 | ||
| 36 | 5 | FU0321-K0 | ||||
| 30 | 40 | 6 | 7 | 10 | FU0357-K0 | |
| 31.5 | 41.5 | 6 | FU0382-K0 | |||
| 35 | 45 | 6 | FU0424-K0 | |||
| 35.5 | 45 | 6 | FU0451-K0 | |||
| 45.5 | 6 | FU0452-K0 | ||||
| 40 | 50 | 6 | FU0497-K0 | |||
| 45 | 55 | 6 | FU0567-K0 | |||
| 56 | 7 | 8 | 11 | FU0572-K0 | ||
| 50 | 60 | 6 | 7 | 10 | FU0619-K0 | |
| 53 | 63 | 6 | FU0679-K0 | |||
| 55 | 65 | 6 | FU0694-K0 | |||
| 56 | 66 | 6 | FU0722-K0 | |||
| 60 | 70 | 6 | FU0746-K0 | |||
| 71 | 7 | 8 | 11 | FU0750-K0 | ||
| 63 | 73 | 6 | 7 | 10 | FU0786-K0 | |
| 65 | 75 | 6 | FU0809-K0 | |||
| 67 | 77 | 6 | FU0828-K0 | |||
| 70 | 80 | 6 | FU0849-K0 | |||
| 71 | 81 | 6 | FU0880-K0 | |||
| 75 | 85 | 6 | FU0901-K0 | |||
| 80 | 90 | 6 | FU0939-K0 | |||
| 85 | 100 | 9 | 10 | 13 | 4 | FU0984-K0 |
| 90 | 105 | 9 | FU1024-K0 | |||
| 95 | 110 | 9 | FU1051-K0 | |||
| 98 | 112 | 8.5 | 9.5 | 12.5 | FU1067-K0 | |
| 100 | 115 | 9 | 10 | 13 | FU1082-K0 | |
| 105 | 120 | 9 | FU1125-K0 | |||
| 106 | 120 | 8.5 | 9.5 | 12.5 | FU1135-K0 | |
| 121 | 9 | 10 | 13 | FU1136-K0 | ||
| 110 | 125 | 9 | FU1157-K0 | |||
| 112 | 125 | 9 | FU1179-K0 | |||
| 115 | 130 | 9 | FU1195-K1 | |||
| 118 | 133 | 9 | 10 | 13 | 4 | FU1205-K0 |
| 120 | 135 | 9 | FU1220-K0 | |||
| 125 | 140 | 9 | FU1252-K0 | |||
| 130 | 145 | 9 | FU1280-K0 | |||
| 136 | 150 | 8.5 | 9.5 | 12.5 | FU1306-K0 | |
| 140 | 155 | 9 | 10 | 13 | FU1323-K0 | |
| 145 | 160 | 9 | FU1343-K0 | |||
| 150 | 165 | 9 | FU1359-K0 | |||
| 155 | 170 | 9 | 14 | FU1388-K0 | ||
| 160 | 175 | 9 | FU1406-K0 | |||
| 165 | 180 | 9 | FU1429-K0 | |||
| 170 | 185 | 9 | FU1443-K0 | |||
| 175 | 190 | 9 | FU1459-K0 | |||
| 180 | 200 | 12 | 13 | 17 | 5 | FU1483-K0 |
| 190 | 210 | 12 | FU1516-K0 | |||
| 200 | 220 | 12 | FU1543-K0 | |||
| 204 | 224 | 12 | FU1563-K0 | |||
| 210 | 230 | 12 | FU1575-K0 | |||
| 220 | 240 | 12 | FU1596-K0 | |||
| 225 | 245 | 12 | FU1621-K0 | |||
| 230 | 250 | 12 | FU1637-K0 | |||
| 240 | 260 | 12 | FU1657-K0 | |||
| 250 | 270 | 12 | FU1678-K0 | |||
| 260 | 285 | 16 | 17 | 21 | 6.5 | FU1704-K0 |
| 270 | 295 | 16 | FU1720-K0 | |||
| 280 | 305 | 16 | FU1733-K0 | |||
| 290 | 315 | 16 | FU1748-K0 | |||
| 300 | 325 | 16 | FU1762-K0 | |||
