UPH型孔轴两用密封

UPH型孔轴两用密封材料包括邵尔90度丁氰橡胶NBR和邵尔90度氟橡胶FKM两种，压力可达到32MPA，邵尔90度丁氰橡胶材料适用温度：-25度---+100度，氟橡胶材料适用于温度：-10度---+150度，UPH型孔轴两用密封具有较大的截面，可用于大范围的操作。

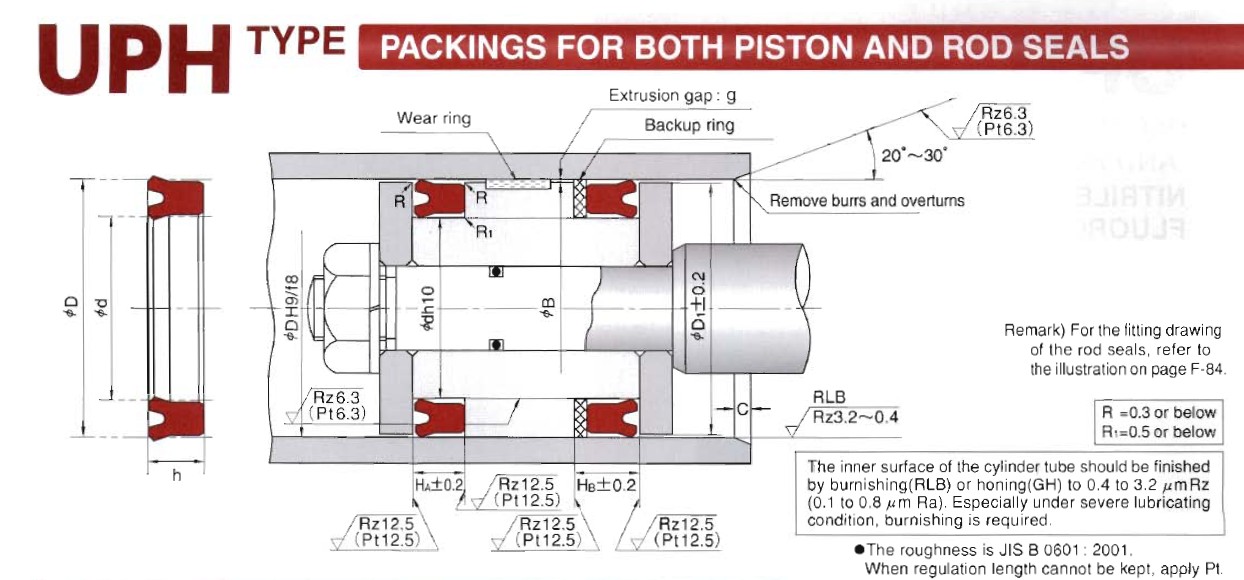

密封件公称尺寸			组装部分尺寸				订货号
D	d	h	HA	HB	φD1	C
6.3	16.3	7.5	8.5	10.5	15.3	2.5	CU3308-D0
6.3	16.3	8	9	11	15.3		CU0024-D0
7.1	17.1	7.5	8.5	10.5	16.1		CU3309-D0
7.1	17.1	8	9	11	16.1		CU0030-D0
8	18	7.5	8.5	10.5	17		CU0042-D0
8	18	8	9	11	17		CU0043-D1
9	19	7.5	8.5	10.5	18		CU3310-D0
9	19	8	9	11	18		CU0054-D0
10	20	7.5	8.5	10.5	19		CU0068-D0
10	20	8	9	11	19		CU0069-D1
11.2	21.2	7.5	8.5	10.5	20.2		CU3311-D0
11.2	21.2	8	9	11	20.2		CU0081-D0
12	25	8	9	11	24		CU0093-D0
12.5	22.5	7.5	8.5	10.5	21.5		CU3312-D0
12.5	22.5	8	9	11	21.5		CU0102-D0
14	24	7.5	8.5	10.5	23		CU0121-D0
14	24	8	9	11	23		CU0122-D0
15	25	8	9	11	24		CU0135-D0
15	28	10	11	13	27		CU0137-D0
16	26	7.5	8.5	10.5	25		CU0156-D0
16	26	8	9	11	25		CU0157-D1
16	32	10	11	13	31		CU0161-D0
18	28	8	9	11	27		CU0182-D0
18	31	10	11	13	30	3.5	CU0186-D0
18	33	10	11	13	32		CU2196-D0
18.5	31.5	10	11	13	30.5		CU3313-D0
20	30	8	9	11	29		CU0215-D1
20	33	10	11	13	32		CU0221-D0
20	35	10	11	13	34		CU0224-D0
21.5	31.5	8	9	11	30.5		CU0239-D0
22	35	10	11	13	34		CU0249-D0
22.4	32.4	8	9	11	31.4		CU0263-D0
22.4	35.4	10	11	13	34.4		CU0265-D1
25	35	8	9	11	34		CU0282-D2
25	38	10	11	13	37		CU0288-D0
25	40	10	11	13	39		CU0292-D0
25	45	12	13	15	44		CU0301-D0
25.5	35.5	8	9	12	34.5		CU0309-D0
27	40	10	11	14	39		CU2347-D0
28	40	10	11	14	39		CU0330-D2
28	41	10	11	14	40		CU0335-D0
28	43	10	11	14	42		CU0340-D0
30	43	10	11	14	42	3.5	CU0364-D0
30	45	10	11	14	44		CU0368-D2
31.5	44.5	10	11	14	43.5		CU0385-D0
31.5	46.5	10	11	14	45.5		CU0387-D1
32	45	10	11	14	44		CU2451-D0
32	46	10	11	14	45		CU0403-D0
32	48	10	11	14	47		CU0404-D0
34	50	12	13	16	49		CU0408-D0
35	50	10	11	14	49	5	CU0437-D4
35	50	12	13	16	49		CU0438-D0
35	51	12	13	16	50		CU0441-D0
35.5	50.5	10	11	14	49.5		CU0456-D2
35.5	51.5	12	13	16	50.5		CU0458-D0
38	52	10	11	14	51		CU0470-D1
40	55	10	11	14	54		CU0505-D3
40	56	10	11	14	55		CU0508-D0
40	56	12	13	16	55		CU0509-D0
40	60	12	13	16	59		CU0514-D0
41	56	10	11	14	55		CU0523-D0
45	60	10	11	14	59		CU0577-D5
45	60	12	13	16	59		CU0578-D0
45	61	12	13	16	60		CU0580-D0
47	63	12	13	16	62		CU0591-D0
48	63	10	11	14	62		CU0601-D1
50	65	10	11	14	64		CU0631-D2
50	66	12	13	16	65		CU0635-D0
50	70	12	13	16	69		CU0639-D3
51	71	12	13	16	70		CU0669-D0
53	69	12	13	16	68		CU3317-D0
53	73	12	13	16	72		CU0683-D0
55	71	12	13	16	70		CU0704-D1
55	75	12	13	16	74		CU0708-D2
55	80	15	16	19	79		CU0712-D0
56	72	12	13	16	71		CU0727-D0
56	76	12	13	16	75		CU0728-D1
60	76	12	13	16	75		CU0757-D1
60	80	12	13	16	79		CU0761-D1
63	79	12	13	16	78		CU0791-D0
63	83	12	13	16	82		CU0793-D1
64	80	12	13	16	79		CU2123-D1
65	81	12	13	16	80		CU3318-D0
65	85	12	13	16	84		CU0819-D1
67	87	12	13	16	86	5	CU0831-D0
67	87	15	16	19	86		CU3319-D0
70	90	12	13	16	89		CU0862-D1
70	90	15	16	19	89		CU0864-D0
71	91	12	13	16	90		CU0884-D1
71	91	15	16	19	90		CU0885-D0
75	95	12	13	16	94		CU0910-D1
75	95	15	16	19	94		CU0911-D1
80	100	12	13	16	99		CU0948-D1
80	100	15	16	19	99		CU0949-D2
85	105	12	13	16	104		CU0989-D1
85	105	15	16	19	104		CU0990-D0
90	110	12	13	16	109		CU1030-D3
90	110	15	16	19	109		CU1031-D0
92	112	12	13	16	111		CU1042-D1
92	112	15	16	19	111		CU2132-D1
95	115	12	13	16	114		CU1056-D0
95	115	15	16	19	114		CU1057-D1
95	120	15	16	19	118		CU1061-D0
100	120	12	13	16	118		CU1089-D3
100	120	15	16	19	118		CU1091-D0
100	125	15	16	19	123		CU1096-D0
105	125	15	16	19	123		CU1129-D2
106	126	15	16	19	124		CU1138-D0
110	130	15	16	19	128		CU1165-D1
112	132	15	16	19	130		CU1182-D0
115	135	15	16	19	133		CU1198-D0
118	138	15	16	19	136		CU1207-D0
120	140	15	16	19	138		CU1224-D2
125	145	15	16	19	143	6.5	CU1257-D0
125	150	19	20	23	148		CU1933-D0
130	150	15	16	19	148		CU1284-D2
130	155	19	20	23	153		CU3320-D0
132	152	15	16	19	150		CU1292-D0
132	157	19	20	23	155		CU2703-D1
135	155	15	16	19	153		CU1305-D0
135	160	15.7	17	20	158		CU3322-D0
135	160	19	20	23	158		CU1960-D0
140	160	15	16	19	158		CU1327-D1
140	165	19	20	23	163		CU1332-D2
145	165	15	16	19	163		CU1344-D0
145	170	19	20	23	168		CU2348-D0
150	170	15	16	19	168	6.5	CU1363-D2
150	175	19	20	23	173		CU1367-D0
155	180	15	16	20	178		CU1391-D2
155	180	15.7	17	21	178		CU3323-D0
155	180	19	20	24	178		CU1393-D0
160	185	15	16	20	183		CU1413-D0
160	185	19	20	24	183		CU2349-D0
165	190	15	16	20	188		CU1431-D0
165	190	19	20	24	188		CU3324-D0
170	195	15	16	20	193		CU1448-D1
170	195	19	20	24	193		CU3325-D0
175	200	15	16	20	198		CU1461-D2
175	200	15.7	17	21	198		CU3326-D0
175	200	19	20	24	198		CU1463-D1
180	205	15	16	20	203		CU1490-D0
180	205	19	20	24	203		CU1492-D0
185	210	15	16	20	208		CU1504-D0
190	215	15	16	20	213		CU1519-D0
190	215	19	20	24	213		CU3327-D0
199	224	15	16	20	222		CU1532-D0
199	224	15.7	17	21	222		CU3329-D0
199	224	19	20	24	222		CU1535-D0
200	225	15	16	20	223		CU1547-D0
200	225	19	20	24	223		CU2350-D0
210	235	18	19	23	233		CU1579-D0
212	237	19	20	24	235		CU1585-D0
215	240	19	20	24	238		CU3331-D0
224	249	19	20	24	247		CU2926-D0
225	250	18	19	23	248		CU1625-D0
225	250	19	20	24	278		CU1626-D0
236	261	19	20	24	259		CU1649-D0
250	275	19	20	24	273		CU1683-D1
255	280	19	20	24	278	8	CU1694-D0
265	297	24	26	30	295		CU1714-D0
270	300	18	19	23	298		CU1722-D0
270	300	24	26	30	298		CU1725-D0
280	310	22	24	28	308		CU2774-D0
280	312	24	26	30	310		CU2166-D0
283	315	24	26	30	313		CU1918-D0
290	320	18	19	23	318		CU1750-D0
290	320	22	24	28	318		CU1752-D0
300	332	24	26	30	330		CU2351-D0
310	340	18	19	23	338	10	CU1772-D0
310	340	22	24	28	338		CU1773-D0
315	347	24	26	30	345		CU3064-D0
320	340	12	13	17	338		CU2101-D0
320	350	22	24	28	348		CU1780-D0
323	355	24	26	30	353		CU1784-D0
330	355	16	17	21	353		CU1786-D0
330	356	20	22	26	354		CU1787-D0
330	360	22	24	28	358		CU1789-D0
335	355	14	15	19	353		CU1793-D1
335	367	24	26	30	365		CU2197-D0
340	370	22	24	28	368		CU1795-D0
345	365	14	15	19	363		CU2243-D0
348	380	24	26	30	378		CU2087-D1
350	370	14	15	19	368		CU2302-D0
350	380	22	24	28	378		CU1799-D2
355	385	22	24	28	383		CU1801-D0
355	387	24	26	30	385		CU1916-D0
360	390	22	24	28	388		CU1803-D0
365	395	22	24	28	393		CU1805-D0
368	400	24	26	30	398		CU1807-D0
370	400	23	25	29	398		CU1810-D0
370	400	25	27	31	398		CU1811-D0
371	396	16	17	21	394		CU2303-D0
375	407	24	26	30	405		CU3357-D0
380	400	15	16	20	398		CU1813-D0
380	410	15	16	20	408		CU1815-D0
380	420	30	32	36	418		CU2162-D0
390	420	22	24	28	418		CU1818-D0
395	425	22	24	28	423		CU1819-D0
400	430	22	24	28	428		CU1823-D0
400	430	25	27	31	428		CU2007-D0
400	432	24	26	30	430		CU3358-D0
420	455	25	27	32	453	10	CU1833-D0
425	457	24	26	31	455		CU1917-D0
430	470	20	22	27	468		CU1837-D0
435	470	25	27	32	468		CU1841-D0
440	480	35	37	42	478		CU1843-D0
445	470	18	19	24	468		CU2244-D0
450	480	22	24	29	478		CU1844-D0
450	482	24	26	31	480		CU3359-D0
460	500	20	22	27	498		CU1850-D0
475	507	24	26	31	505		CU1853-D0
480	505	18	19	24	503		CU2245-D0
490	530	25	27	32	528		CU1855-D0
520	550	17	18	23	548		CU2189-D0
525	555	15	16	21	553		CU1860-D0
530	570	20	22	27	568		CU2084-D0
540	560	14	15	20	558		CU2037-D0
570	600	17	18	23	598		CU2190-D0
600	630	20	22	27	628		CU2160-D0
600	630	28	30	35	628		CU2036-D0
600	640	30	32	37	638		CU1868-D0
640	685	25	27	32	683	12	CU2284-D0
700	730	15	16	21	728		CU1873-D0
760	800	34	36	41	798		CU1877-D0
768	800	30	32	37	798		CU1878-D0
818	850	24	26	31	848		CU1882-D1
825	850	16	16.5	21.5	848		CU1883-D0
825	860	27	29	34	858		CU2124-D0
925	950	14	15	20	948		CU2325-D0
950	980	20	22	27	978		CU1892-D0
1020	1050	18	19	24	1048		CU1894-D0
1025	1055	15	16	21	1053		CU1895-D0
1100	1140	20	22	27	1138		CU2192-D0
1220	1280	30	32	37	1278		CU1899-D0
1560	1600	20	22	27	1598		CU2191-D0
1620	1680	30	32	37	1678		CU1904-D0
